Equipment information

Test equipment：Vibration test stand     Equipment model：EM 1500F2K-75N250

Test equipment：Acceleration gauge    Equipment model：B&W10539

Laboratory environment

Temperature: （25±5）℃;

Relative humidity: 25% ~75%RH;

Refer to the test specification

According to the method provided by the customer

Test conditions

Non-operational，Vibration frequency: 5-800Hz Vibration direction: 6 faces  Acceleration: 3.13Grms Axial: ±X, ±Y, ±Z/30 minutes

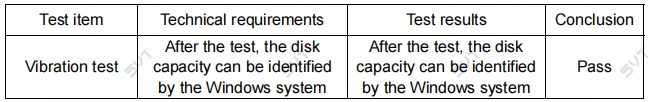

Test result

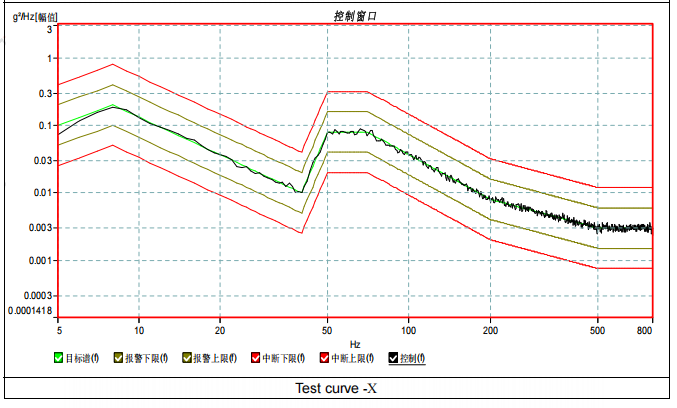

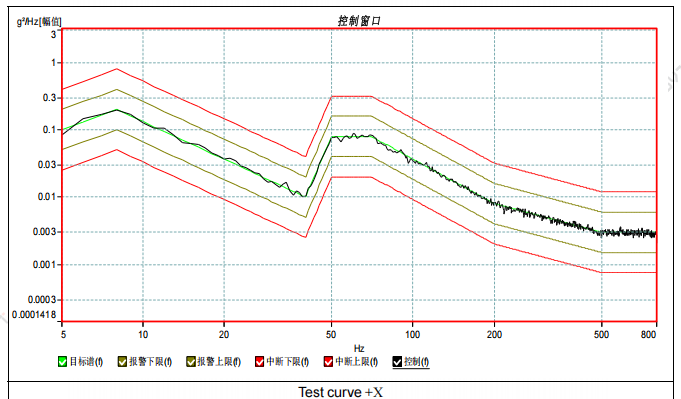

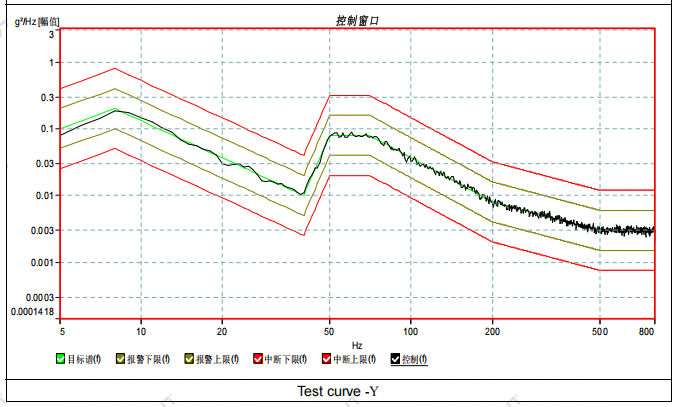

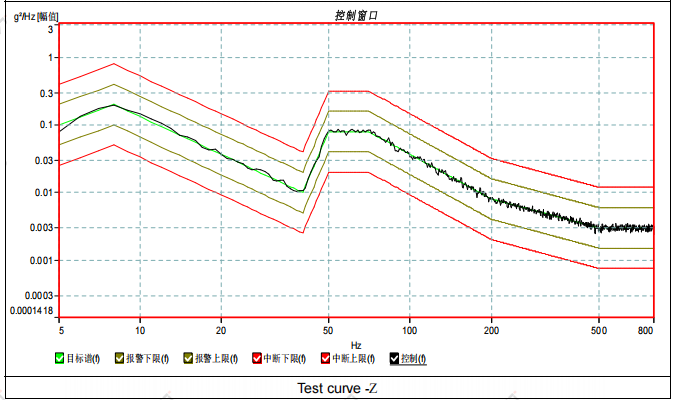

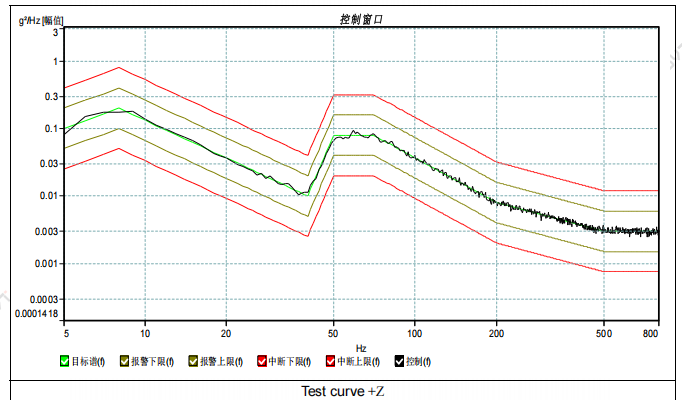

Test curve
